SFTP Batch Processor

Payment Express provides a SFTP Batch solution for merchant who need to process large number of transactions quickly, easily and securely.

SFTP Batch has been specifically designed to support organizations that do regular billing for the same or variable amounts and do not want the compliance cost or risk of storing sensitive card details.

  • Secured FTP connection
  • No additional application is required
  • Capable of processing thousands of transactions in one batch job
  • Supports all standard transaction types
  • Easily reconcile transactions using Payment Express reports
  • 32-bit and 64-bit compatible

Download Documentation

Payment Express SFTP Documentation (PDF): Click here to download

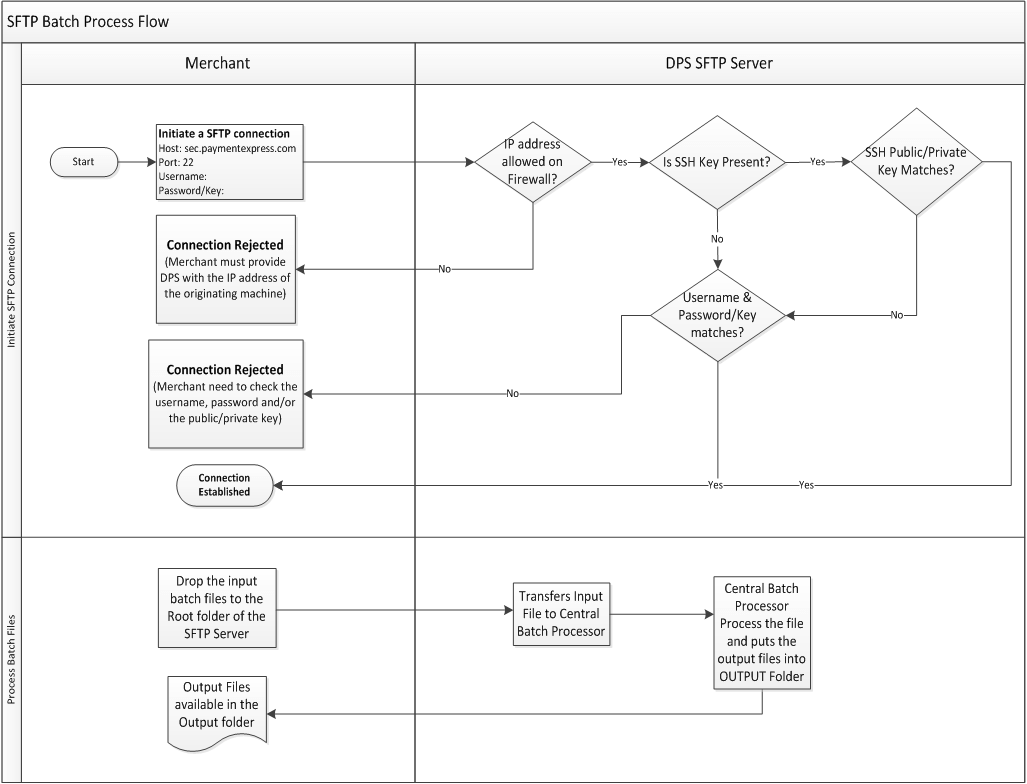

The merchant needs to initiate a SFTP (SSH File Transfer Protocol) connection with Payment Express and once the connection has been established the SFTP Server monitors the server for input batch files. When an input file is detected the file is sent to the central batch processor for processing. Once processed, an output file is put in the OUTPUT folder for merchant pickup.

SFTP Connection

Organizations who wish to access the Payment Express SFTP service must provide Payment Express with the IP address of the originating machine.

Host: sftp.paymentexpress.com

Port: 22

There are two methods in which organizations can login to the Payment Express SFTP server.

Username & Password

  • Username and password setup and provided by Payment Express.
  • Merchant connects to Payment Express SFTP address (port 22) and authenticates using a username and password.

Input File Specification

The Input file format is CSV (Comma Separated Value), Excel style. Each line of the file represents an authorisation, purchase, completion, refund or add cards request.

Please note in order to avoid any unexpected errors in the output the input file needs to contain ASCII text characters only and it should not contain any Unicode characters. If there is any unexpected errors in the output please remove any hidden characters in the input file.

Payment Express will ensure that all lines within the body contain valid transactions and that the transaction count and total in the footer before attempting to process the transactions contained in the batch. Where actual card numbers have been used in the batch input these will be truncated within the output file.

Field Value
Header "PXBatchStart"
Batch ID Unique Identifier assigned by organisation

Body

The body contains the information required for the transactions. There are several different transaction types available and each of them contains a slightly different body format.

Below is the example of the fields for a purchase, authorisation, completion and refund transaction.

The body contains the information required for the transactions. There are several different transaction types available and each of them contains a slightly different body format.

Below is the example of the fields for a purchase, authorisation, completion and refund transaction.

Body

Field Parameter Description
1 TxnType Transaction type that you would like to send. Can be Purchase Refund Tipping or Billing type transactions. Valid values are 'A'=Auth 'C'=Completion 'P'=Purchase 'R'=Refund 'V'=Validate 'B'=Bill
2 Account Payment Express account number. Values can be 0-9999 depending upon account to settle to.
3 MerchantReference Free transaction reference field. E.g.: booking reference order reference or invoice number.
4 CardNumber/BillingId/ DPSBillingId/CardNumber2 Card Number. Note - must be followed by a single ' character if this file is loaded and saved using Microsoft Excel spreadsheet.
5 ExpiryDate Card Expiry Date in MMYY format. Some acquirers do not require this field - contact Payment Express for more details. Also not required if BillingId/DpsBillingId is used.
6 Amount Amount in d.cc format e.g. $1.23 would be 1.23
7 PreAuthNumber/ DpsTxnRef Either PreAuthNumber or DpsTxnRef (Preferred) needs to present for completion requests to match against original authorisation. DpsTxnRef will also need to be present for Refund transactions to match the original Purchase Completion or Billing transaction.
8 CPC Corporate Purchase Card transactions. Extended data which will appear on corporate cardholder's statements if your merchant account supports it.
9 CardHolderName Cardholder Name if known.

Example of a purchase transaction

P 9997Ref1 4111111111111111 1010 1.23 TEST NAME1

Output File Specification

The Output file format is CSV (Comma Separated Value), Excel style. The original filename is used with the suffix "_OUT" appended to the original name. The file type .CSV is preserved. Each line of the file represents an authorisation, purchase, completion or refund result. All the Output files will be placed in an output folder.

Field Value
Header "PXBatchStart"
Batch ID Unique Identifier assigned by organisation
Batch Success "0" if successful
Reason "Batch successful" or Reason for failure if applicable
Example: PXBatchStart BatchReference123 0 Batch successful

Body

Field Parameter Description
1 TxnType Transaction type that you would like to send. Can be Purchase Refund Tipping or Billing type transactions. Valid values are 'A'=Auth 'C'=Completion 'P'=Purchase 'R'=Refund 'V'=Validate 'B'=Bill
2 Account Payment Express account number. Values can be 0-9999 depending upon account to settle to.
3 MerchantReference Free transaction reference field. E.g.: booking reference order reference or invoice number.
4 CardNumber/BillingId/DpsBillingId/CardNumber2 Card Number. Note - must be followed by a single ' character if this file is loaded and saved using Microsoft Excel spreadsheet
5 ExpiryDate Card Expiry Date in MMYY format
6 Amount Amount in d.cc format e.g. $1.23 would be 1.23
7 PreAuthNumber/DpsTxnRef Either PreAuthNumber or DpsTxnRef (Preferred) needs to present for completion requests to match against original authorisation. DpsTxnRef will also need to be present for Refund transactions to match the original Purchase Completion or Billing transaction.
8 CPC Corporate Purchase Card transactions. Extended data which will appear on corporate cardholders statements if your merchant account supports it.
9 CardHolderName Cardholder Name if known.
10 Result Success of the transaction. 0=declined/failed 1=accepted
11 ResponseCode 2 character response code e.g.: "00"
12 ResponseText Text associated with response code. E.g.: "ACCEPTED"
13 AuthCode Authorisation (Approval) code if accepted.
14 DpsTxnRef Payment Express' unique transaction reference of the new transaction
15 AcquirerDate YYYYMMDD
16 AcquirerTime HHMMSS
17 DateSettlement YYYYMMDD

Example: P,9997,Ref1,411111......1111,1010,1.23,, , TEST NAME1,1,00,APPROVED,151837,0000000101a19474,20121025,151837,20121025

Body

Field Value
Footer "PXBatchEnd"
Transaction Count Count of transactions in body
Transaction Amount Total Sum of transaction amounts in body
Example: PXBatchEnd 3 0.00

Example

PXBatchStart,BatchReference123,0,Batch successful

P,9997,Ref1,411111......1111,1010,1.23,, , TEST NAME1,1,00,APPROVED,151837,0000000101a19474,20121025,151837,20121025

P,9997,Ref1,411111......1111,1010,1.23,, , TEST NAME2,1,00,APPROVED,151837,00000001015bac95,20121025,151837,20121025

P,9997,Ref1,411111......1111,1010,1.23,, , TEST NAME3,1,00,APPROVED,151837,0000000103s45dh7,20121025,151838,20121025

PXBatchEnd,3,3.69

- When the transaction count doesn't match in the input file:

Output file with error message: hash total in footer is incorrect

- When transaction amount total doesn't match in the input file:

Output file with error message: transaction count in footer is incorrect

Batching Scenarios

Purchase Transactions

Input

Sample PXBatchStart,Batch1

P,9997,Ref1,4111111111111111,1010,1.23, , ,TEST NAME1

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1,0,Batch successful

P,9997,Ref1,411111......1111,1010,1.23,, , TEST NAME1,1,00,APPROVED,151837,0000000101a19474,20121025,151837,20121025

PXBatchEnd,1,1.23

Refund Transactions

Input

Sample PXBatchStart,Batch1

R,9997,Refund,,,1.23, 0000000101a19474,,TEST NAME

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

R,9997,Refund,,,1.23,0000000101bbc153,,TEST NAME,1,00,APPROVED,152225, 0000000101a19474,20121029,152225,20121029

PXBatchEnd,1,1.23

Note: The DpsTxnRef is highlighted above. This value is given as the output in the original purchase, complete or billing transaction. All refund transactions need to be matched with the original transaction.

Authorisation Transactions

Input

Sample PXBatchStart,Batch1

A,9997,Auth1,4111111111111111,1010,1.23,,,TEST NAME

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

A,9997,Auth1,411111......1111,1010,1.23,,,TEST NAME,1,00,

APPROVED,15282401bbd3f600000001,0000000101bbd3f6,20121029,152824,20121029

PXBatchEnd,1,1.23

Note: The Pre-Authorisation code (15282401bbd3f600000001) is given back and can be used to complete transactions.

Note: The DpsTxnRef (0000000101bbd3f6) is given back and is the preferred method for matching the completions.

Completion Transactions using Pre-Auth Number

Input

Sample PXBatchStart,Batch1

C,9997,Completion,,,1.23,15282401bbd3f600000001,,TEST NAME

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

C,9997,Completion,,,1.23,15282401bbd3f600000001,,

TEST NAME,1,00,APPROVED,153424,0000000101bbe227,20121029,153424,20121029

PXBatchEnd,1,1.23

Note: The Pre-Auth Number is highlighted above. This value was given as the output from the original authorisation transaction.

Completion Transaction using DPSTxnRef

Input

Sample PXBatchStart,Batch1

C,9997,CompDPSTxnRef,,,1.23,0000000101bbd3f6,,TEST NAME

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

C,9997,CompDPSTxnRef,,,1.23,0000000101bbd3f6,,

TEST NAME,1,00,APPROVED,153649,0000000101bbe7b1,20121029,153649,20121029

PXBatchEnd,1,1.23

The output format has the following properties in addition to the input message - Authorized (1 or 0), ReCo, Response Text, DpsBillingId, DpsTxnRef, Date, Time, DateSettlement

Billing Transactions (with dpsbillingid)

Input

Sample PXBatchStart,Batch1

B,9997,dpsbillid,0000010003224216, ,1.23, , ,TEST NAME

PXBatchEnd,1,1.23

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

B,9997,dpsbillid,0000010003224216, ,1.23,, ,TEST NAME,0,JA,DECLINED,,,,,19800101

PXBatchEnd,1,1.23

Billing Transactions (with billingid)

Input

Sample PXBatchStart,Batch1

B,9997,Reference,SampleBillingID, ,1.23, , ,TEST NAME

PXBatchEnd,1,1.23

Output Sample PXBatchStart,Batch1 ,0,Batch successful

B,9997,Reference,SampleBillingID, ,1.23,, ,TEST NAME,1,00,APPROVED,160125,0000000101bc23c6,20121029,160125,20121029

PXBatchEnd,1,1.23

Billing Transactions (with cardnumber2)

Input

Sample PXBatchStart,Batch1

X0009,K,9997,Charge CardNumber2,0090200000000023, ,1.00, , , ,123

PXBatchEnd,1,1.00

Output

Sample PXBatchStart,Batch1 ,0,Batch successful

X0009,K,9997,Charge CardNumber2,0090200000000023, ,1.00, , , ,123,1,00,APPROVED,175305,0000000101a2fd17,20121025,175305,20121025

PXBatchEnd,1,1.00

Note: The CardNumber2 is highlighted above. The CardNumber2 value is given as the output when performing Add CardNumber2 batch (Sample available below).

Adding billing cards

To add a billing card to the Billing Vault and receive a token for subsequent billing purposes you will use a different message format. A format specifier, "X0006", must appear as the first field in every record.

Valid TxnTypes are "P", which processes a purchase transaction and stores the card details, "A", which processes an authorisation transaction and stores the card details, and "H", which simply stores the card details without processing a financial transaction.

X0006, TxnType, Operation, Account, Merchant Reference, Card Number, Expiry, Amount, Issue Number, Card holder name, Billing ID

The Billing ID field can be left blank if you intend to obtain and use the DpsBillingId only. For "H" transaction type use an amount of "1.00" which will be disregarded as no financial transaction takes place.

Add Card (billingid)

Input

Sample PXBatchStart,Batch1

X0006,H,Add,9997,create token 1,4111111111111111,1010,1.00, ,C HOLDER,billingID1

PXBatchEnd,1,0.00

Output

Sample PXBatchStart,Batch1,0,Batch successful

X0006,H,Add,9997,create token 1,411111......1111,1010,1.00, ,C HOLDER,billingID1,1,,ADDED,0000010003224867,,,,

PXBatchEnd,1,0.00

The output format has the following properties in addition to the input message - Authorized (1 or 0), ReCo, Response Text, DpsBillingId, DpsTxnRef, Date, Time, DateSettlement

Add Card (dpsbillingid)

Input

Sample PXBatchStart,Batch1

X0006,H,Add,9997,create token 1,4111111111111111,1010,1.00, ,C HOLDER

PXBatchEnd,1,0.00

Output

Sample PXBatchStart,Batch1,0,Batch successful

X0006,H,Add,9997,create token 1,411111......1111,1010,1.00, ,

C HOLDER,,1,,ADDED,0000010003224216,,,,

PXBatchEnd,1,0.00

Add cardnumber2

Add Cardnumber2

Input

Sample PXBatchStart,Batch1

X0008,H,Add, ,create CardNumber2 1,4111111111111111,0110, , ,C HOLDER

PXBatchEnd,1,0.00

Output

Sample PXBatchStart,Batch1,0,Batch successful

X0008,H,Add, ,create CardNumber2 1,411111......1111,0110, , ,

C HOLDER,1,,ADDED,0090200000000023,2BC29AF2,,,

PXBatchEnd,1,0.00

2BC29AF2 = TxnMac Value

Exception Handling

Some card issuer have risk management rules in place that cause a transaction to be declined if it is the same card and the same value being processed within 5 minutes of each other. Therefore the exception handling service is designed to handle this scenario.

Duplicate Transactions

If a transaction is submitted in a batch file that has the same cardnumber and transaction amount, the transaction will be put into a sub-file for later processing.

The exception handling services is turned off by default. For more information on enabling the Exception Handling, please contact support@paymentexpress.com

Message Field Properties

Account (input) Max 4 characters

Accounts with Payment Express can be setup with multiple merchant numbers. This field can be used to specify which merchant number should be used to process the transaction. Allowed values range between 0-9999. If only one merchant account has been setup this value will usually be 1 for a live account. And 9997 for a development account. Please contact Payment Express to confirm the value that should be used in this field.

AcquirerDate (output) Max 8 bytes

Contains the date the transaction was processed in YYYYMMDD format. This field may be blank if the transaction was rejected locally or otherwise not processed by the bank host.

AcquirerTime (output) Max 8 bytes

Contains the date the time of the day the transaction was processed in HHMMSS format. This field may be blank if the transaction was rejected locally or otherwise not processed by the bank host.

Amount (input) Max 13 characters

Set the amount to be charged or refunded (depending on the TxnType). Format is d.cc (d=dollars, c=cents). Max amount is 99999.99

AVS Post Code (output) Datatype: BSTR Max 20 bytes

Address Verification System property. Post Code that is listed on the customer's bank statement.

AVS StreetAddress (output) Datatype: BSTR Max 60 bytes

Address Verification System property. Address that is listed on the customer's bank statement.

AVS Action (output) Datatype: INT Max 1 bytes

Address Verification System property. Values are 0,1 & 2.

0 - do not check AVS details with acquirer, but pass them through to Payment Express only.

1 - Attempt AVS check. If the acquirer doesn't support AVS or is unavailable, then transaction will proceed as normal. If AVS is supported it will check the transaction and give the result.

2 - The transactions needs to be checked by AVS, even if isn't available, otherwise the transaction will be blocked.

The value will most likely be 1 for most circumstances.

BillingId (input) Max 32 characters

This is an identifier generated by the merchant application that is used to identify a customer or billing entry and can be used as input instead of card number and date expiry for subsequent billing transactions.

CardHolderName (output) Max 64 characters

The cardholder name as it appears on customer card.

CardNumber (input) Max 20 characters

The card number. No leading or embedded blanks are permitted. Must contain a numeric value.

Corporate Purchase Card (input) Mandatory 30 characters

Amex Corporate Purchase Card transactions. Extended data, which will appear on corporate cardholders statements if your merchant account supports it. This field needs to be exactly 30 characters, with the first character being an "A". The CPC field contains 2 corparate purchase card reference fields, with the 1st 9 characters after the "A" belonging to Corporate Purchase Card data 1 and the last 20 characters of the CPC input field belonging to Corporate Purchase Card data 2. You will need to pad if your reference is shorter than the required field length.

Example - P,9997,Reference,4111111111111111,1010,1.23,,A4387436 Payment March ,TEST NAME

DateExpiry (input) Max 4 bytes

Indicates card expiry date. Format is MMYY where MM is month 01-12 and Year 00-99. do not insert "/" or other delimiter. Some acquirers do not require this field - contact Payment Express for more details. Also not required if BillingId/DpsBillingId is used.

DateSettlement (output) Max 8 bytes

Indicates Date of settlement (when money will be deposited in Merchant bank account) if this is supported by the Acquirer, otherwise contains the date the transaction was processed in YYYYMMDD format.

DpsTxnRef (input/output) Max 16 Characters

Returned for every transaction. If the transaction was approved, DpsTxnRef can be used as input to a Refund or Completion transaction for other Payment Express products. Used to specify a transaction for refund without supplying the original card number and expiry date. The DpsTxnRef value returned by the original approved Auth transaction must be supplied also when doing a complete transaction.

DpsBillingId (input) Max 16 Characters

When output, contains the Payment Express generated BillingId. Only returned for transactions that are requested by the application with the EnableAddBillCard value set to 1 (true) indicating a token billing entry should be created.

MerchantReference (input) Max 32 Characters

Free text to appear on transaction reports.

ResponseText (output) Max 20 Characters

The Response Text is associated with ResponseCode. For successful transactions this is usually Approved and for unsuccessful transactions this can be a number of texts depending on why the transaction declined. For example it could be Card Expired, Declined, Invalid Card, REFER TO CARD ISSUER, DO NOT HONOUR. All acquirers have their own response texts and should be displayed for better understanding of why the transaction got declined.

ResponseCode (output) Max 2 characters

2 character response code from the bank. Explanation of the ResponseCode is usually provided in the ResponseText.

Result (output) Boolean true/false

Indicates success or failure of the transaction. 1 for successful and 0 for an unsuccessful transaction.

TxnType (input) Max 1 Character

Value Description
P Purchase
R Refund
A Auth
C Completion
V Validate
B Bill
